BMDeck – Steel Ribs Profile

Price: Contact

BMDeck – Steel Ribs Profile with the advantage is the steel using the highest effective in designing, manufacturing and erecting. As structural components, but the surface is treated steel so the steel surface will have many technical and architectural applications. The surface treatment is made at the factory and site so the Deck- Steel plate is easy to preserve and be durable over time. BM Deck – Steel is constructed and installed in all weather conditions to reduce the costs incurred by postponing the construction when unfavorable weather condition occurs.

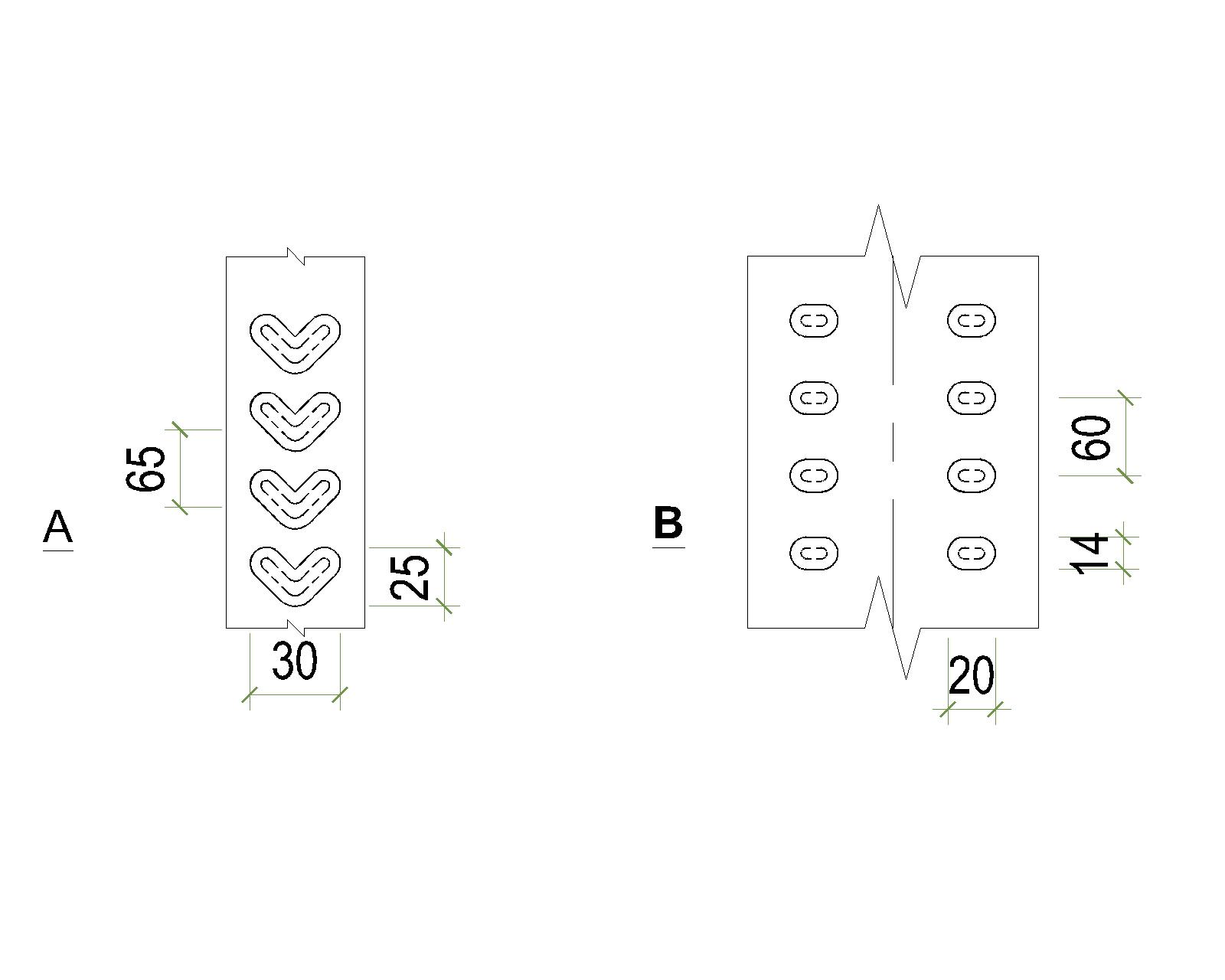

BMDeck H51

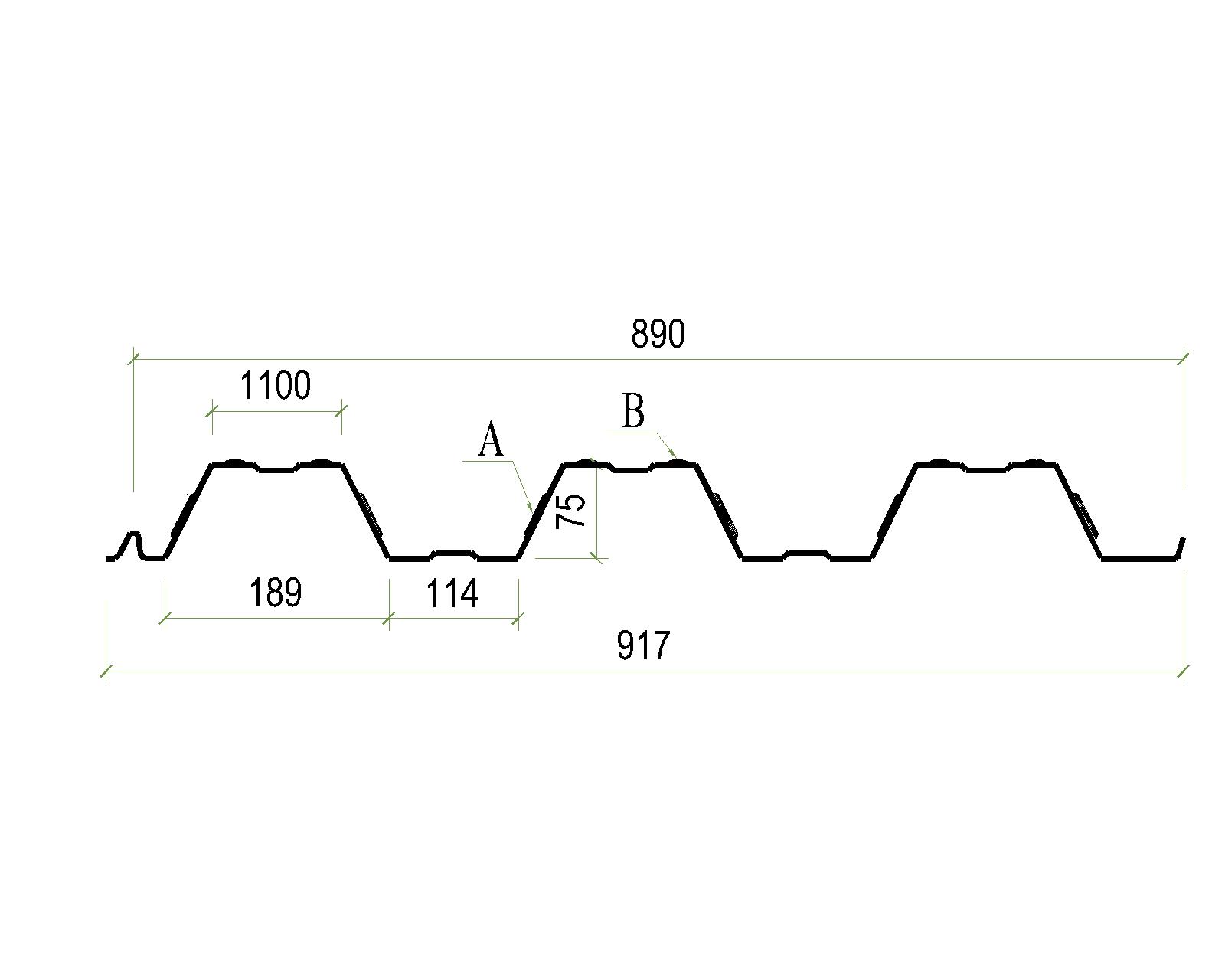

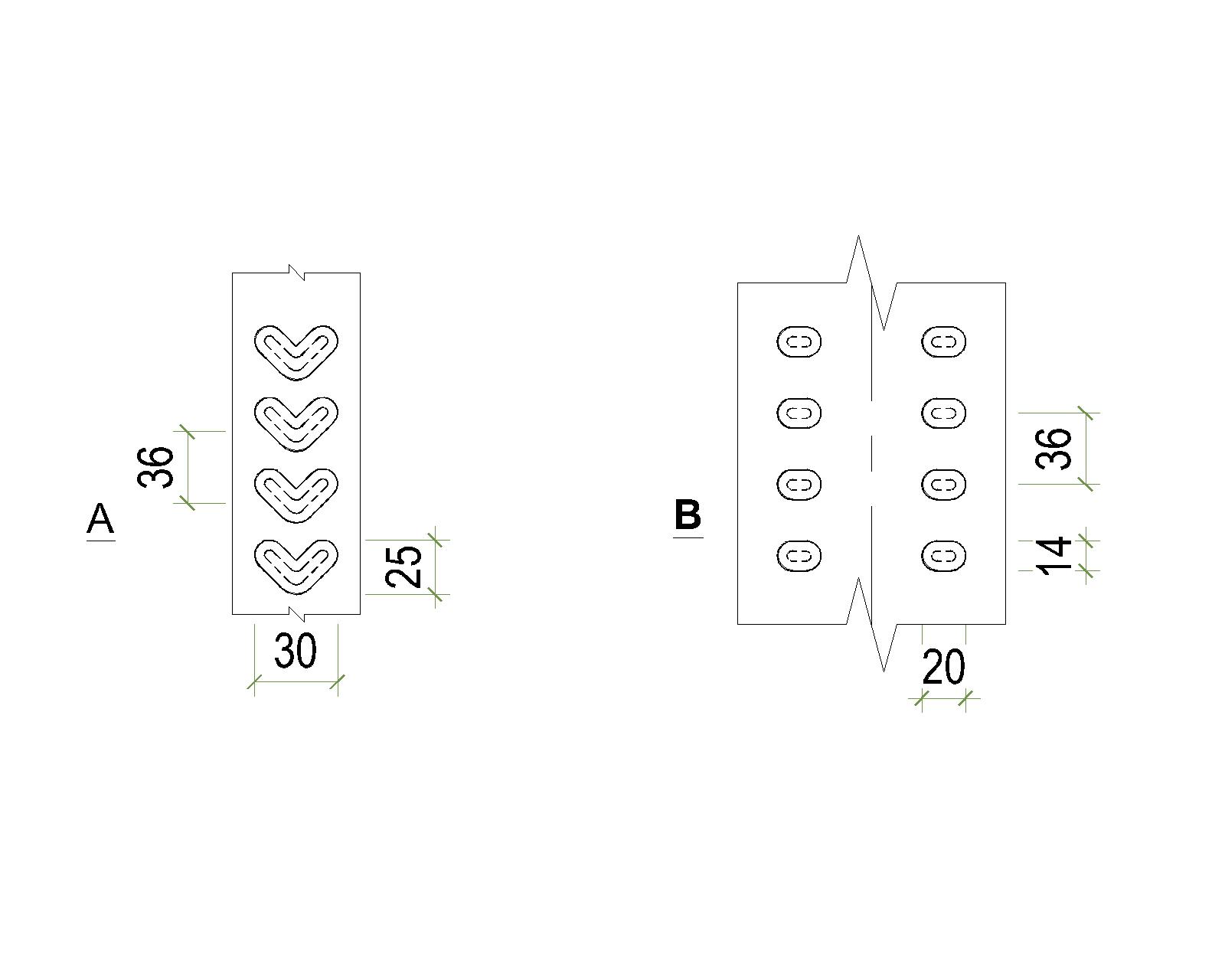

BMDeck H75

Đặc điểm của sản phẩm

Chiều dầy sau mạ After coating thickness 0.75mm; 0.95mm; 1.2mm
Chiều rộng hữu dụng Cover width 890mm
Chiều cao sóng Rib height 75mm +/- 0.03mm
Chiều dài Length Theo yêu cầu
Dung sai Tolerance Chiều dài/Length: +/- 0mm -:- 15mm

Chiều rộng hữu dụng/ Cover width: +/-4mm
Trọng lượng lớp mạ Coating mass 80g/m2 -:- 275g/m2
Gới hạn chảy Yield strength 300Mpa -:- 550Mpa


Thép nguyên liệu



Material

 Làm từ thép mạ nhôm kẽm, mạ mầu theo các tiêu chuẩn của Úc AS1397, của Mỹ ASTM, của Nhật JIS được cung cấp bởi các hãng nổi tiếng trên thế gới như BlueSccope, SSSC, ….vv Made from aluminum galvanized steel, color coated according to AS1397 Australian Standard, ASTM American standard, JIS Japan standard and supplied by famous companies in the world such as BlueSccope, SSSC, etc.
